VOIP GATEWAY (ANALOG/E1/GSM GATEWAY)



WCDMA VoIP Gateways

VOIP GATEWAY :: OpenVox PBX Systems & Gateways for Small Medium Enterprises

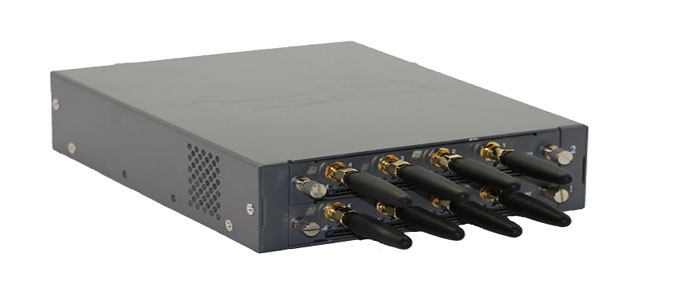

VS-GW1202 UMTS Series



  1. - Provides up to 2 plug-in 3G gateway modules;
  2. - Support 4 or 8 3G channels and 2 Ethernet ports.



คุณลักษณะเฉพาะ (Specification)

  • OpenVox VoxStack Series 3G(WCDMA) Gateway is an industry 1st open source asterisk-based 3G VoIP Gateway solution for SMBs and SOHOs. With friendly GUI and unique modular design, users may easily setup their customized Gateway. Also secondary development can be completed through AMI.

    There are three 3G Gateway models with VoxStack series 3G Gateway, the VS-GW1202 series, VS-GW1600 series and the VS-GW2120 series. The new 3G Gateway VS-GW1202-8W with the Modular Design can provides up to 2 plug-in 3G gateway modules which could support 4 or 8 3G channels and 2 Ethernet ports, developed for interconnecting a wide selection of codecs, including G.711A, G.711U, G.729, G.722, G.723, G.726 & GSM. With 3G connection to VoIP gateway, it can quickly reduce telecommunication expenses and maximize cost-savings. With the unique design of the VoxStack Gateway, it can support hot-swap for both SIM cards and 3G gateway modules. Users can simply add or remove the modules for hardware expansion or exchange. Each 3G gateway module runs an independent asterisk system inside.

    The VoxStack gateway designs with a Lan Switch board that provides stackability on the hardware upgrade. It supports SMS messages sending and receiving and group sending and SMS to email. The 3G Gateways use standard SIP protocol and compatible with Leading IMS/NGN platform, IPPBX and SIP servers, support most of the VoIP operating platforms such as Asterisk, Elastix, 3CX, FreeSWITCH ,Broadsoft etc.





WCDMA VoIP Gateways
VS-GW1600 V2 Wireless Gateway

WCDMA VoIP Gateways

Up to 5 plug-in GSM/WCDMA/LTE gateway modules; Support from 4 to 20 channels.

VS-GW2120 V2 Wireless Gateway

WCDMA VoIP Gateways

Up to 11 plug-in GSM/WCDMA/LTE gateway modules; Support from 4 to 44 channels and 2 Ethernet ports.

VS-GW1202 UMTS Series

WCDMA VoIP Gateways

Provides up to 2 plug-in 3G gateway modules; Support 4 or 8 3G channels and 2 Ethernet ports.

VS-GW1600 UMTS Series

WCDMA VoIP Gateways

Ranging from 4 up to 20 WCDMA channels; Provides up to 5 plug-in WCDMA gateway modules.

VS-GW2120 UMTS Series

WCDMA VoIP Gateways

Provides up to 11 plug-in 3G gateway modules; Support from 4 to 44 3G/UMTS channels and 3 Ethernet ports.

VS-GWM420W

WCDMA VoIP Gateways

Allows OpenVox wireless VS-GW1600/2120 series gateways to support 3G connection to the VoIP devices; Each module offers 4 3G/UMTS channels.

VS-GWM400W

WCDMA VoIP Gateways

Allows OpenVox wireless VS-GW1200/1600/2120 series gateways to support 3G connection to the VoIP devices; Each module offers 4 3G/UMTS channels.
